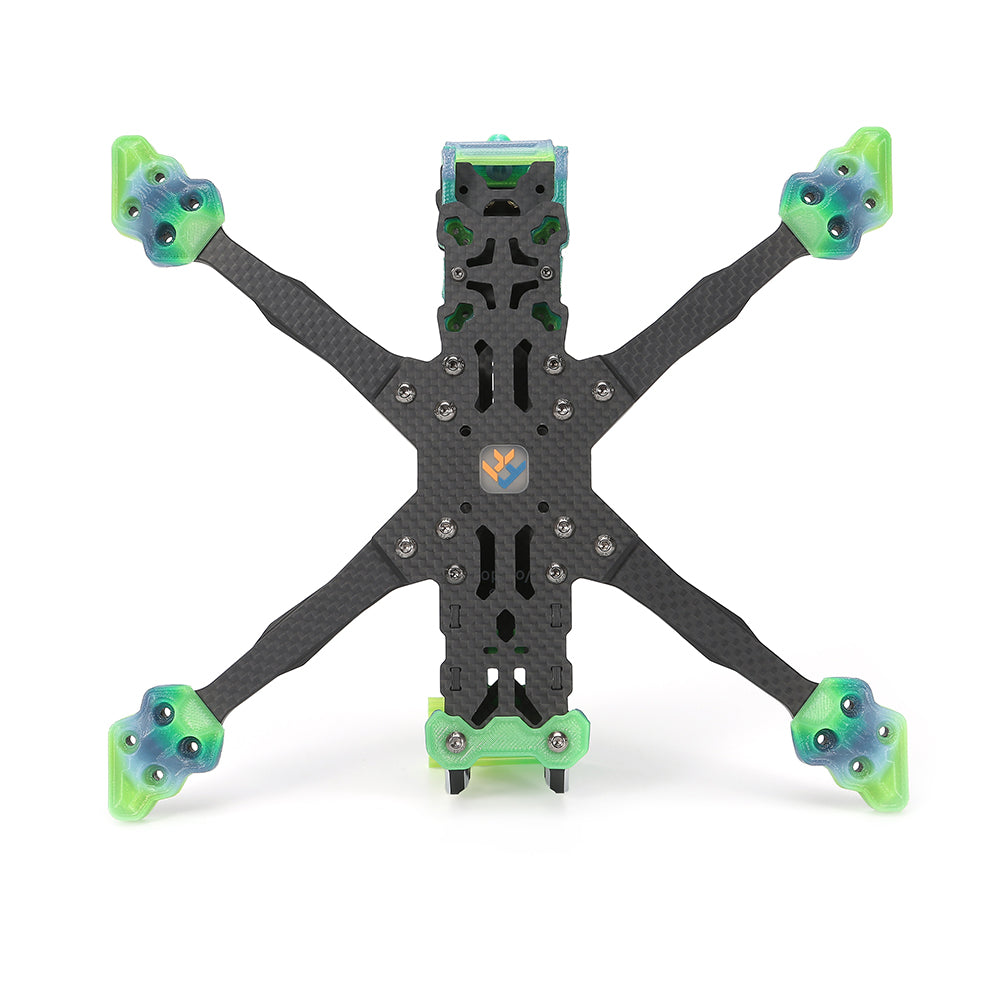

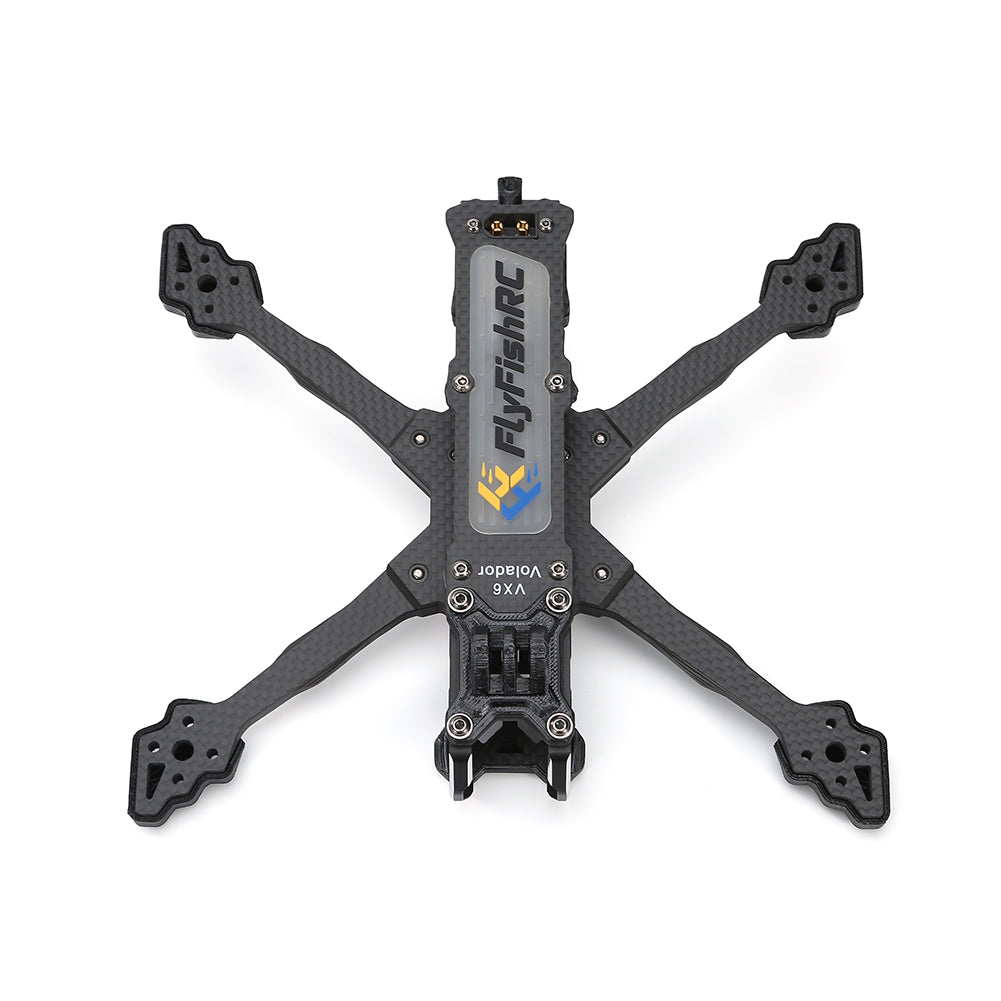

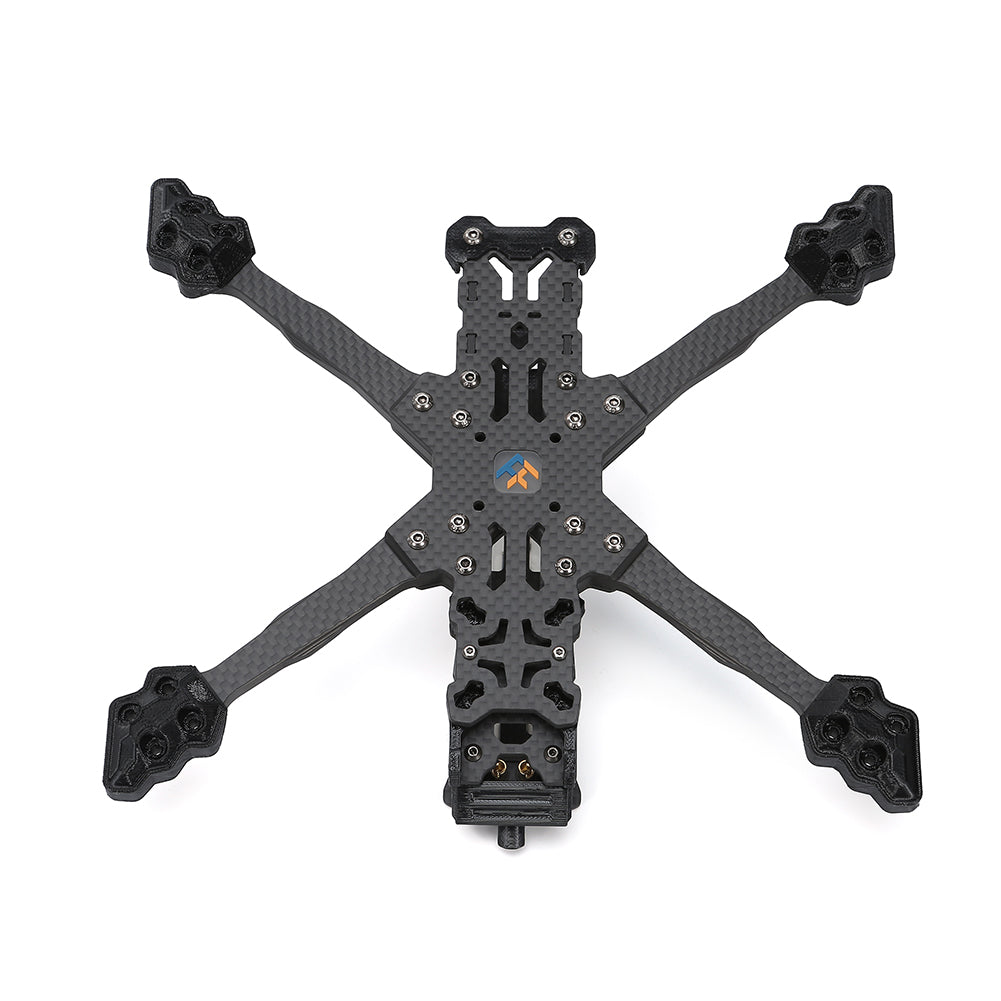

Volador VX6 FPV Freestyle T700 Frame Kit
Subcribe to back in stock notification
Volador series are specifically designed for FPV freestyle and cinematic. Available in two configurations: VX6 and VD6. Made with CNC aluminum alloy parts and high-quality T700 carbon.These frames have undergone countless design improvements and extensive testing to create ultra-crash resistant, which fit up for beginners and professional pilots.
Volador VX6 adopts Squashed X design for maximum control and precision, while Volador VD6 is the Deadcat style frame that lets you get props out of the view. 20x20mm and 30.5x30.5mm stack mounting holes, 20x20mm, 25x25mm VTX mounting makes this frame super convenient! The unique easy-swap arm design and tight-fitting structure design reduce the resonance to the minimum. The high-quality TPU parts adds up to the comfort of use and make the build look very neat and snug.

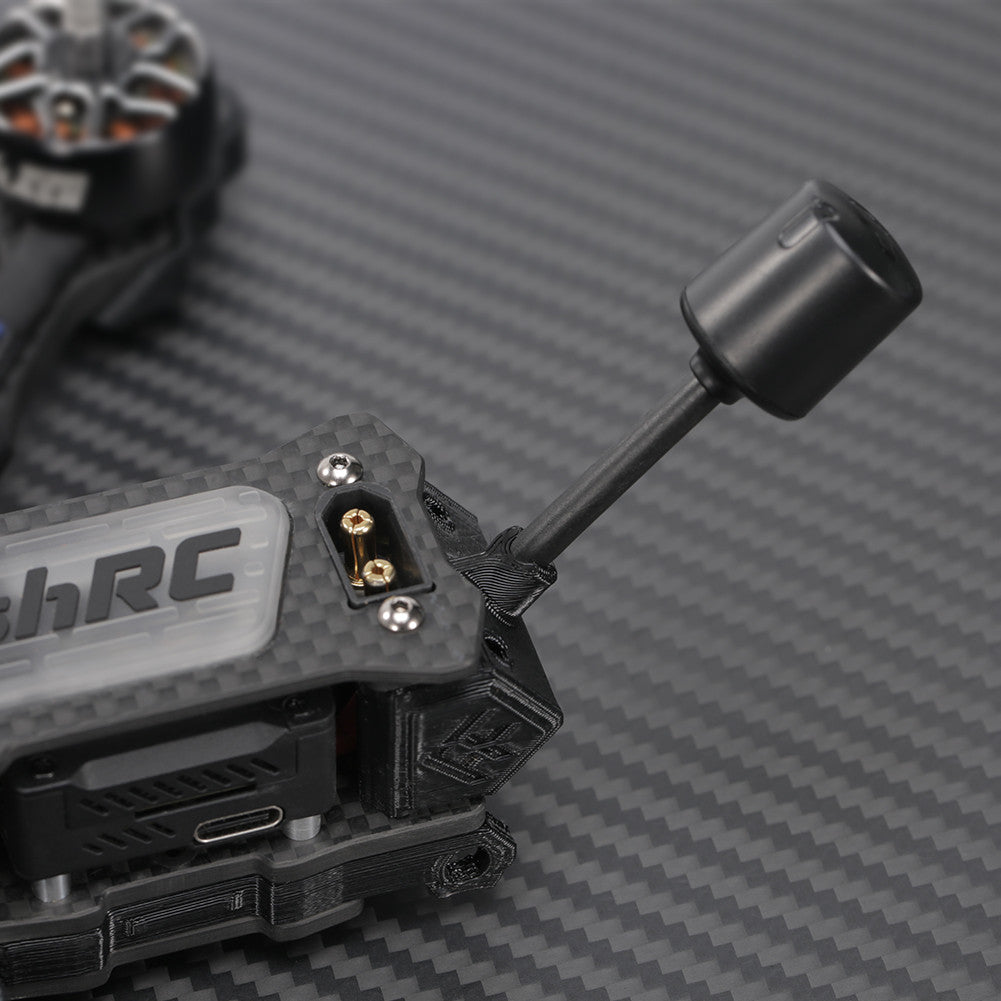

The power lead getting chewed up by propellers during flight. How many times has this happened to people because of improper mounting or crashes? That’s why we have integrated the XT60 connector on the rear of the Volador Frame to allow you to plug the battery easily and, most importantly, eliminate any chances of the cable damage by props or any sort of impact.
A very interesting a novel arm design has been implemented, where the arms are slightly thickened on the sides in the middle, where arms usually tend to break in hard crashes. This provides additional strength and rigidity, ultimately saving you spending additional funds on replacement parts in the long run.
Volador 6” is made of high-strength T700 carbon. The surface of the carbon plates is delicate and smooth, and every part of the frame is carefully chamfered to protect cables from scratches or even your palms and fingers during the building process.
Another interesting little detail of our frame is the unique anti-skid battery pad. We have found a way to make such a cool looking battery pad with our logo on it without increasing the overall cost and making it incredibly “sticky”.

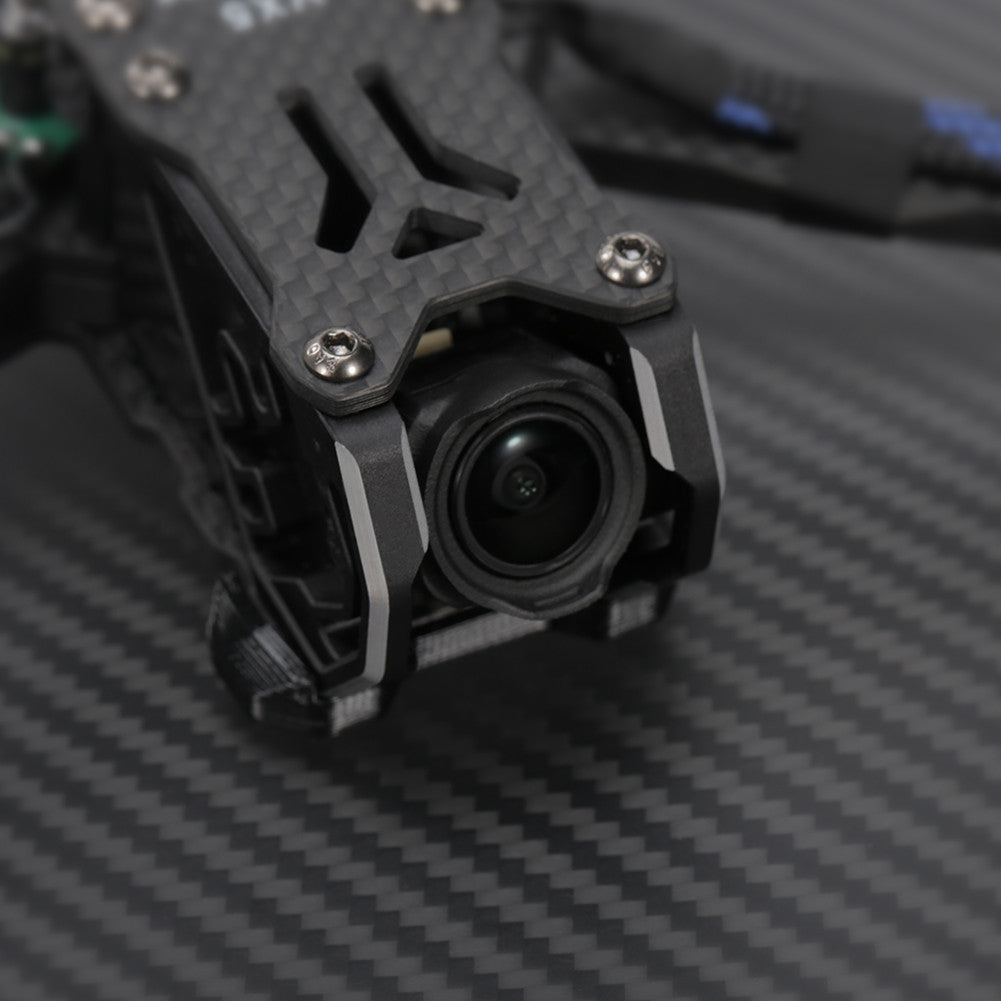

We thought there’s another very important part of the quad that needs better protection. The FPV camera. And that’s why we are using aluminum alloy CNC camera plates. Aside from providing better protection for the camera, it looks very slick as well!
We’ve put huge effort into the TPU parts. They fit the frame fantastically, increase the overall frame durability, and again, look very slick! This is something we take a big pride in!
The frame comes with 12.9-level strength hardware with Loctite thread locker to make for more reliability.
High quality T700 carbon plate
7075 aluminum alloy camera mounting plates for enhanced protection
Cleverly designed thickened arms
The integrated XT60 connector for safety and reliabililty
High quality TPU parts
Unique anti-slip battery pad
12.9 strength hardware coated with Loctite
Compatible with DJI O3 Air Unit/Caddx Vista/Runcam link Wasp/Avatar HD, etc
(Not compatible with DJI FPV Air Unit)
Arm Thickness: 6mm
Top plate thickness: 2.5mm
Middle plate thickness: 3mm
Bottom plate thickness: 3mm
Propeller size: 6~6.1 inch
Material: T700 carbon plate
FPV cam spacing: 19mm/20mm
Weight: 211.1g(with TPU parts)
Total Dimensions: 209mm*159mm Wheelbase: 268mm
Stack mounting holes: 20mm*20mm/30.5mm*30.5mm(M3)
VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
