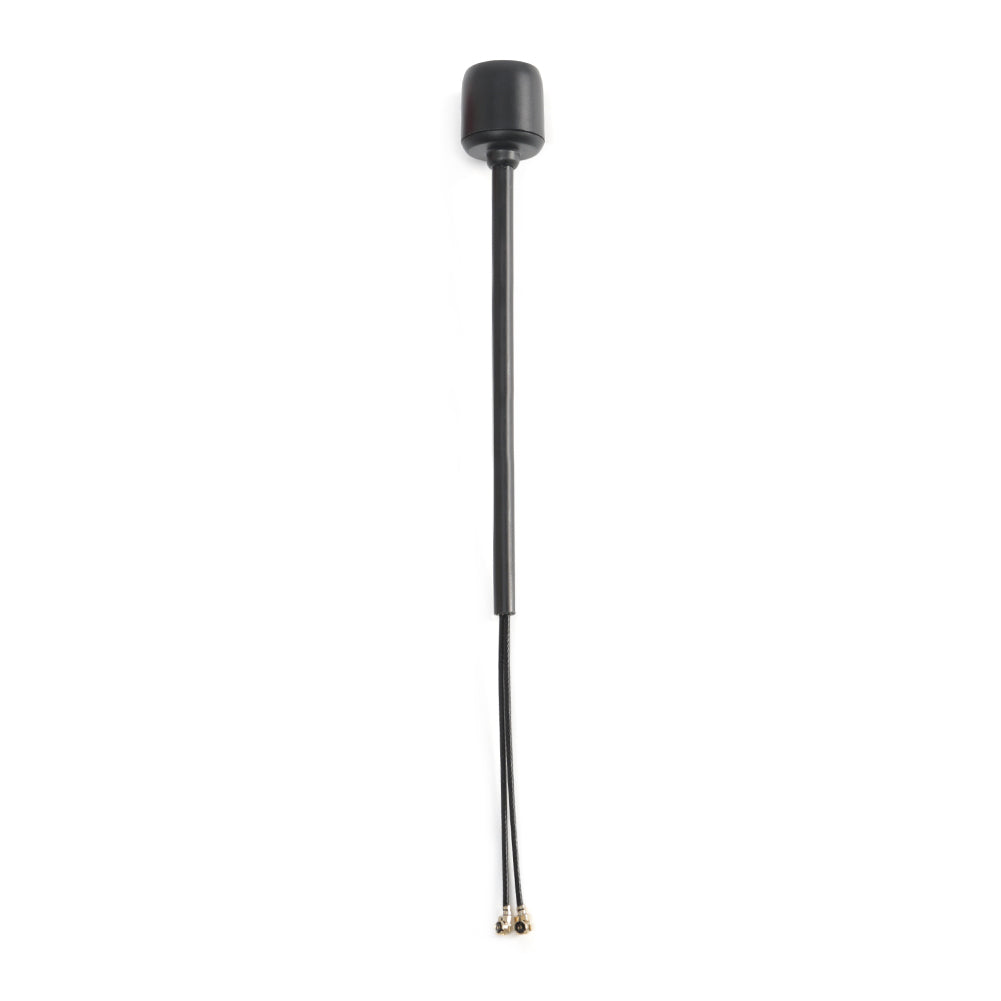

FlyFishRC Dual-Band 5.8Ghz/2.4Ghz UFL Antenna For DJI O3

A000468
42 In stock
$14.90
Colors :
Length :
$14.90

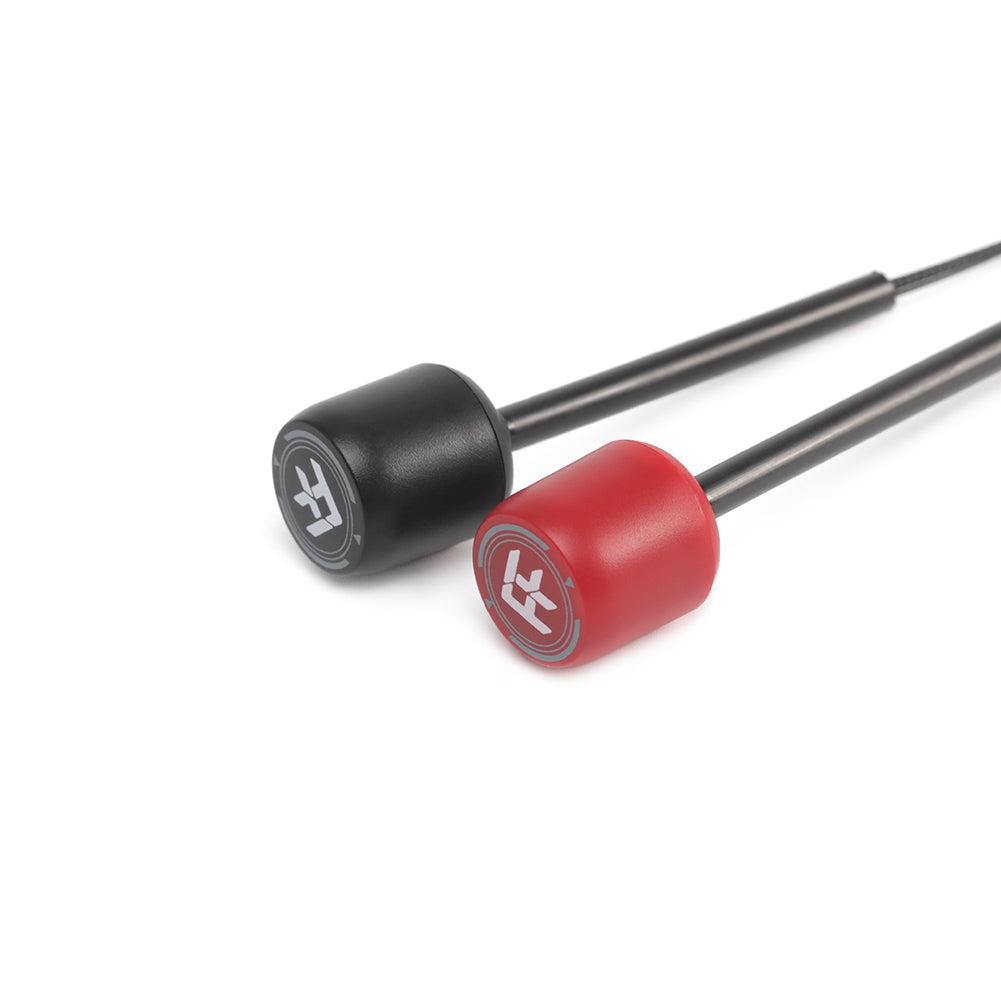

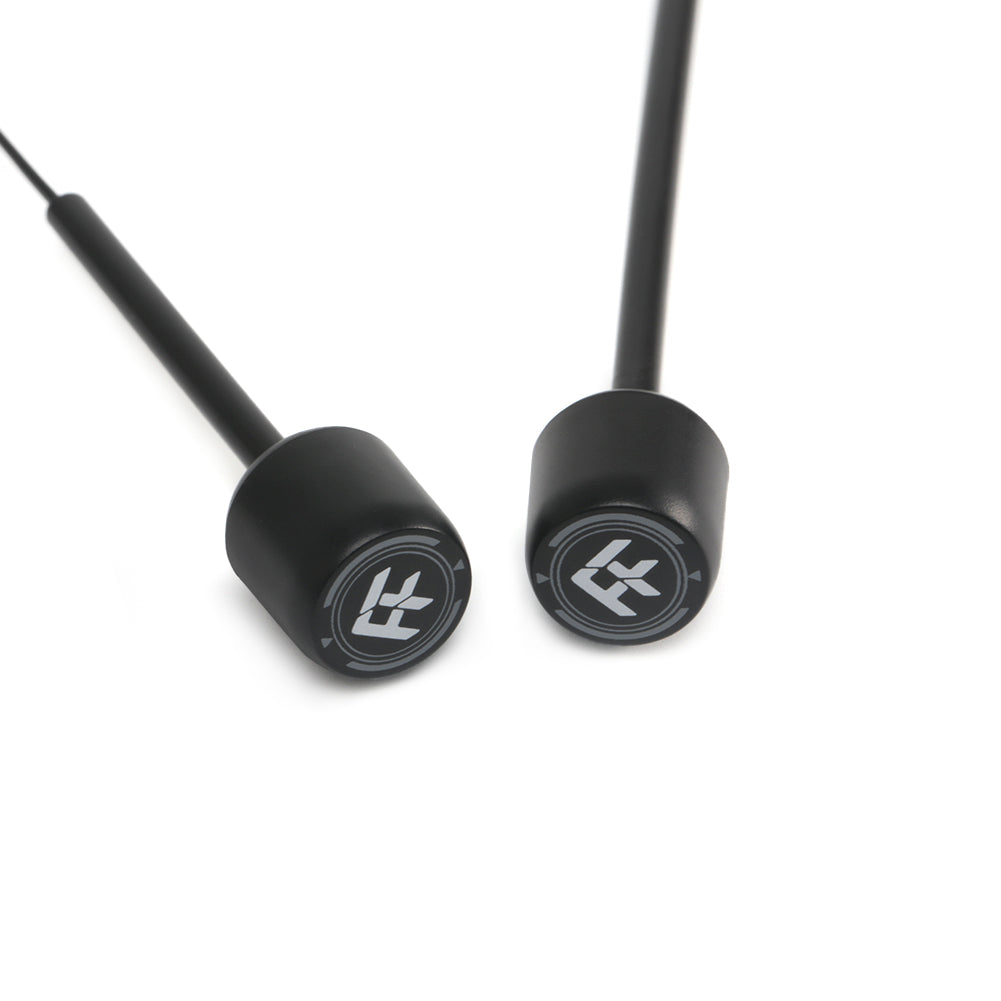

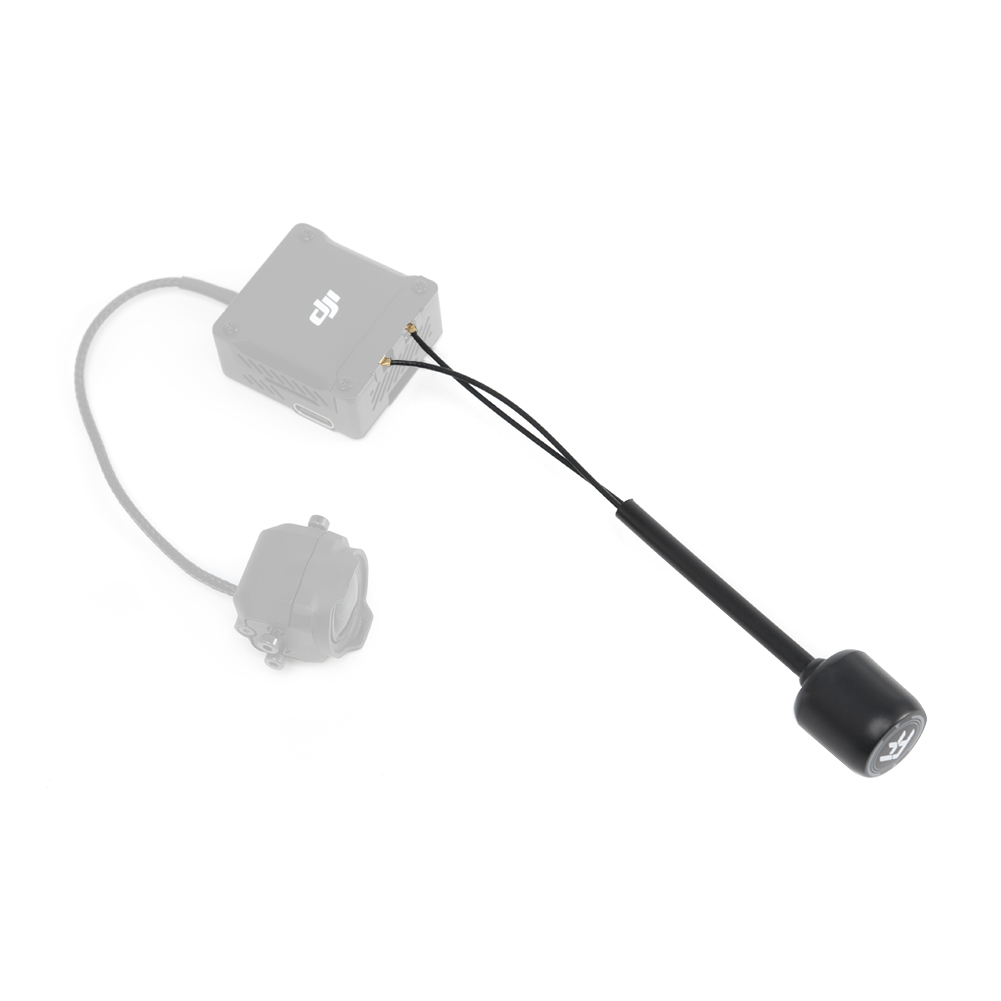

FlyFishRC offers a dual-band dual-polarized omni-directional antenna for the DJI O3 Air Unit that features internal integration of 2.4G and 5.8G dual-band dual-polarized technology to provide comparable compatibility and performance to the original device. It has a strong anti-interference capability for long-distance transmission and is equipped with an I-PEX dual connector, making it small and lightweight. The antenna comes in red and black with different lengths available to suit different flight purposes. Its housing is made of impact-resistant polycarbonate material, providing a smooth surface and durability.

Specifications:
Frequency Range:2400-2500MHz/5700-5900MHz
Gain:2.5dBi/3.8dBi
VSWR≤1.6
Polarization: Linear
Impendance:50Ω

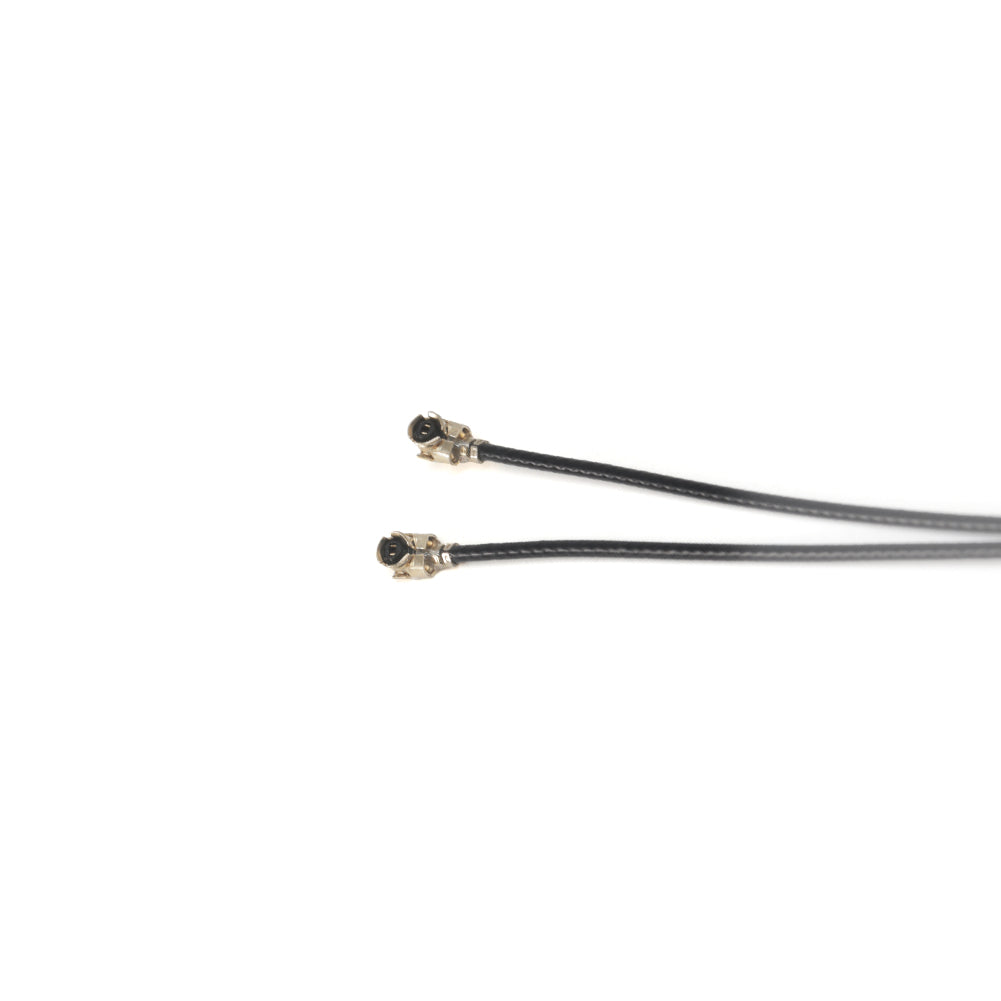

Connector: IPEX*2
Cable: RF1.13

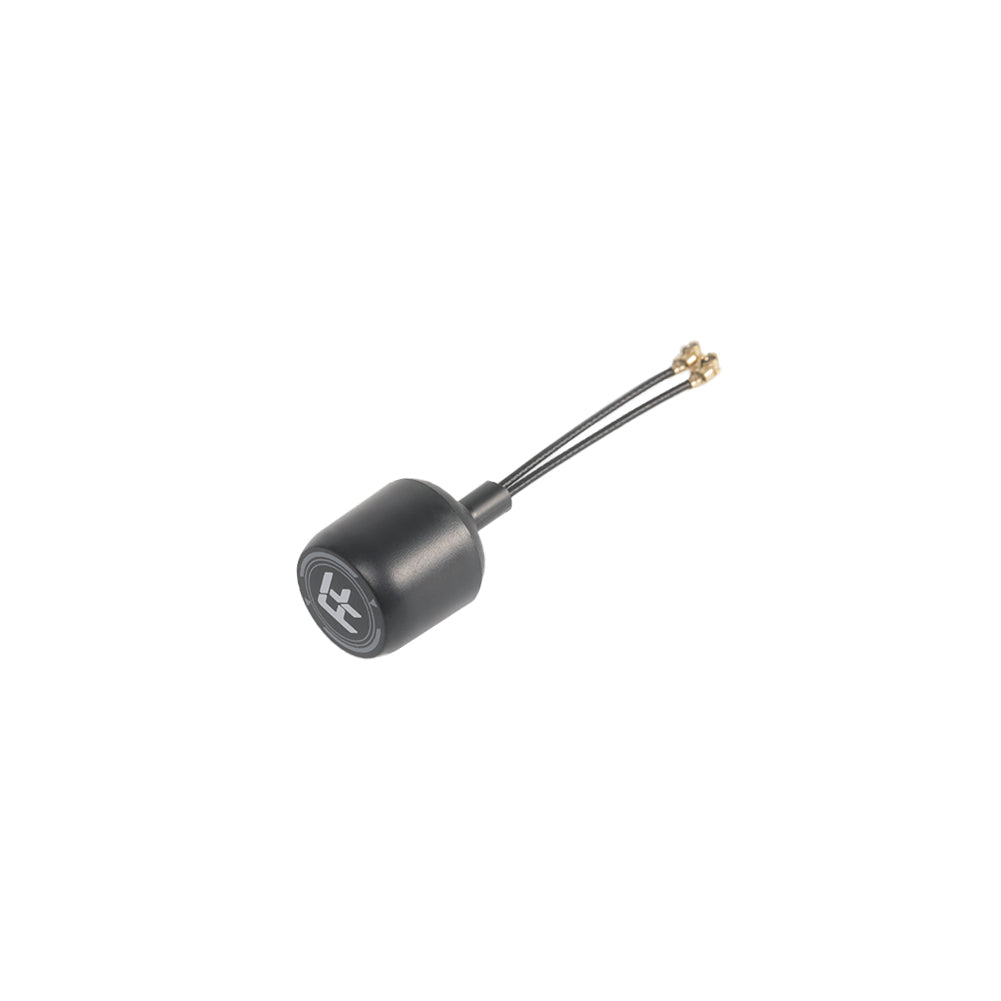

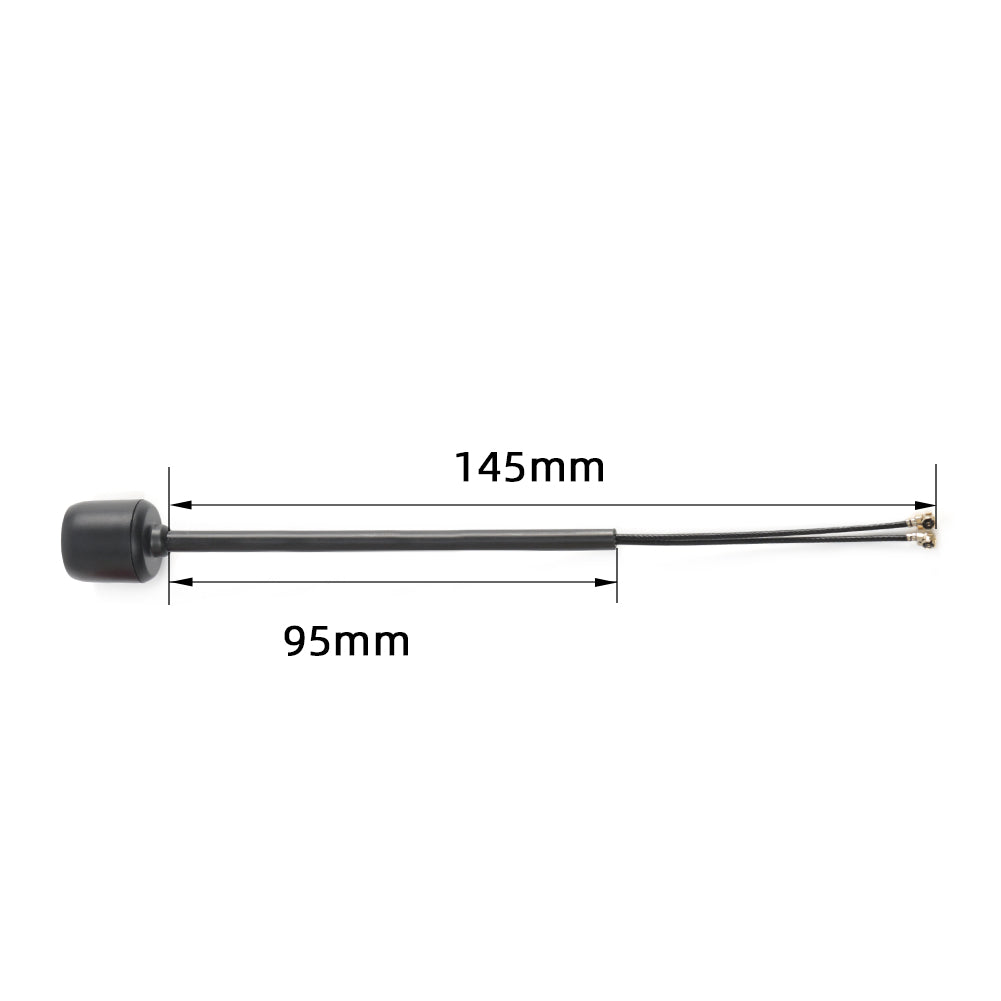

40mm Stubby weight:2.4g

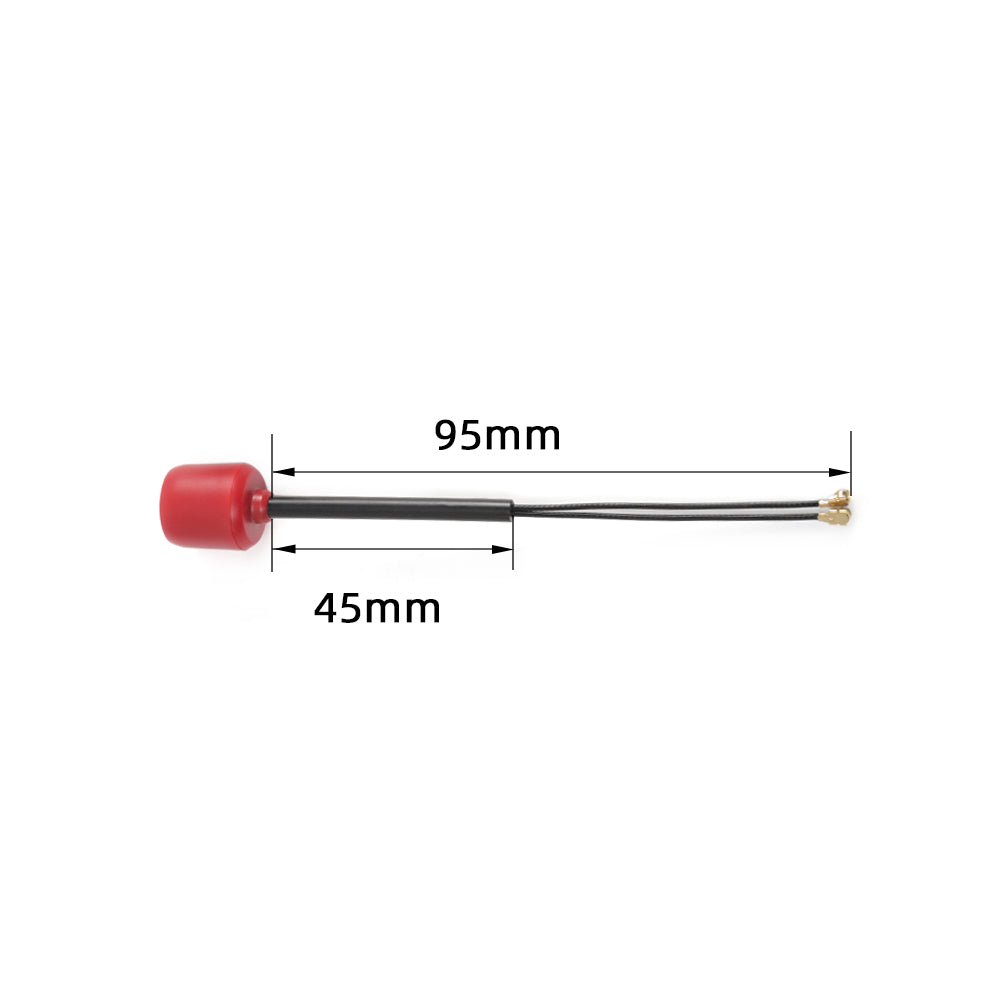

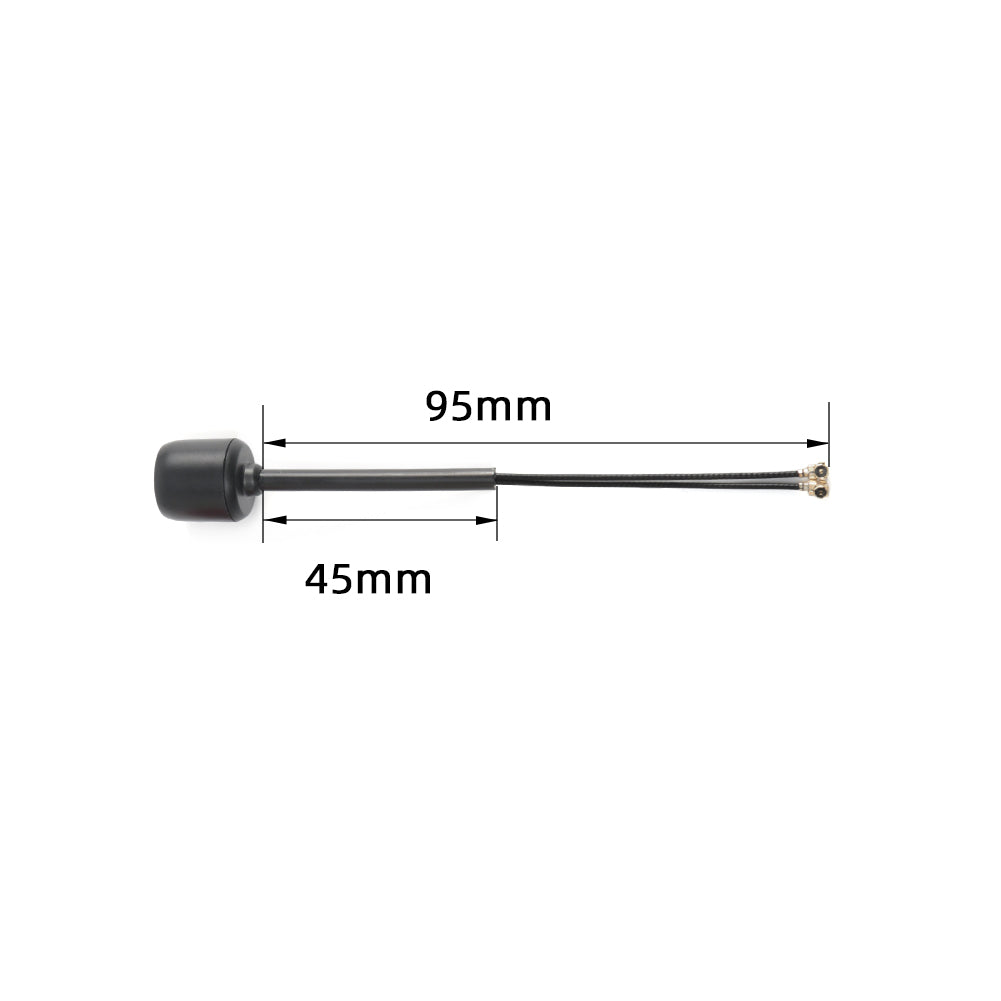

95mm weight:3.3g

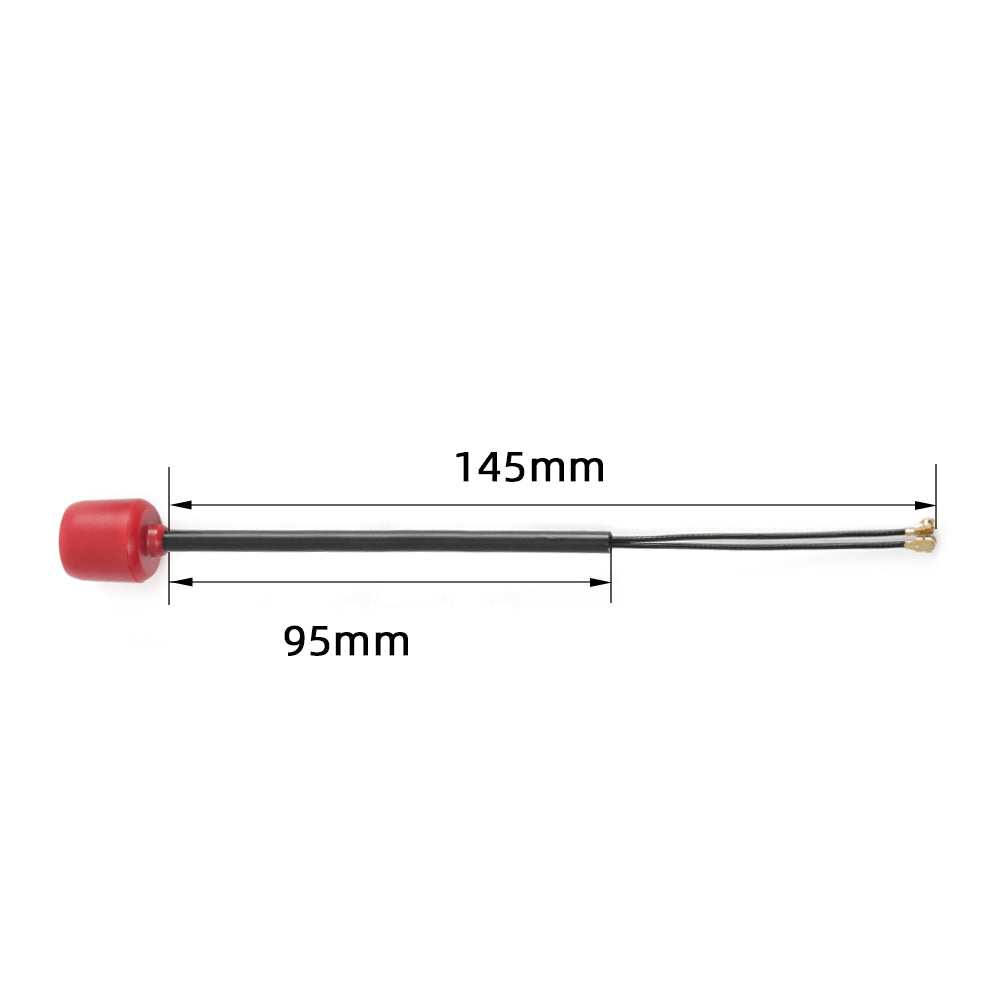

145mm weight:3.9g
Size:Φ16*17mm

Includes:
1x FlyFishRC O3 Dual-band Antenna

Customer Reviews

Based on 13 reviews
69%
(9)
15%
(2)
0%
(0)
0%
(0)
15%
(2)
J
Jon Kornacki
Long

So far it is what I was wanting to get long range when I wanna fly far for sure I'll have more review once I get in flight still building

R
Richard Purcell
Flyfish osprey duel band antenna

I purchased 3 of these antennas for my dji o3 air systems and so far they.seem great my only complaint is one of the ufl connectors came off the antenna lead wasn't attached very well but they seem like good antennas.

R
Rodger Zinke
So good I bought a second one for another build

It's cheap, durrible and good There's nothing more to say about it! :)

L
Luís Semana
No package received

Good afternoon, I haven't received the order yet so I can't send an opinion on it. I can only indicate that delivery is taking a long time.

G
Greg Bienvenu
Best to date

They work great and I love the stubby so it's a win win in my book
