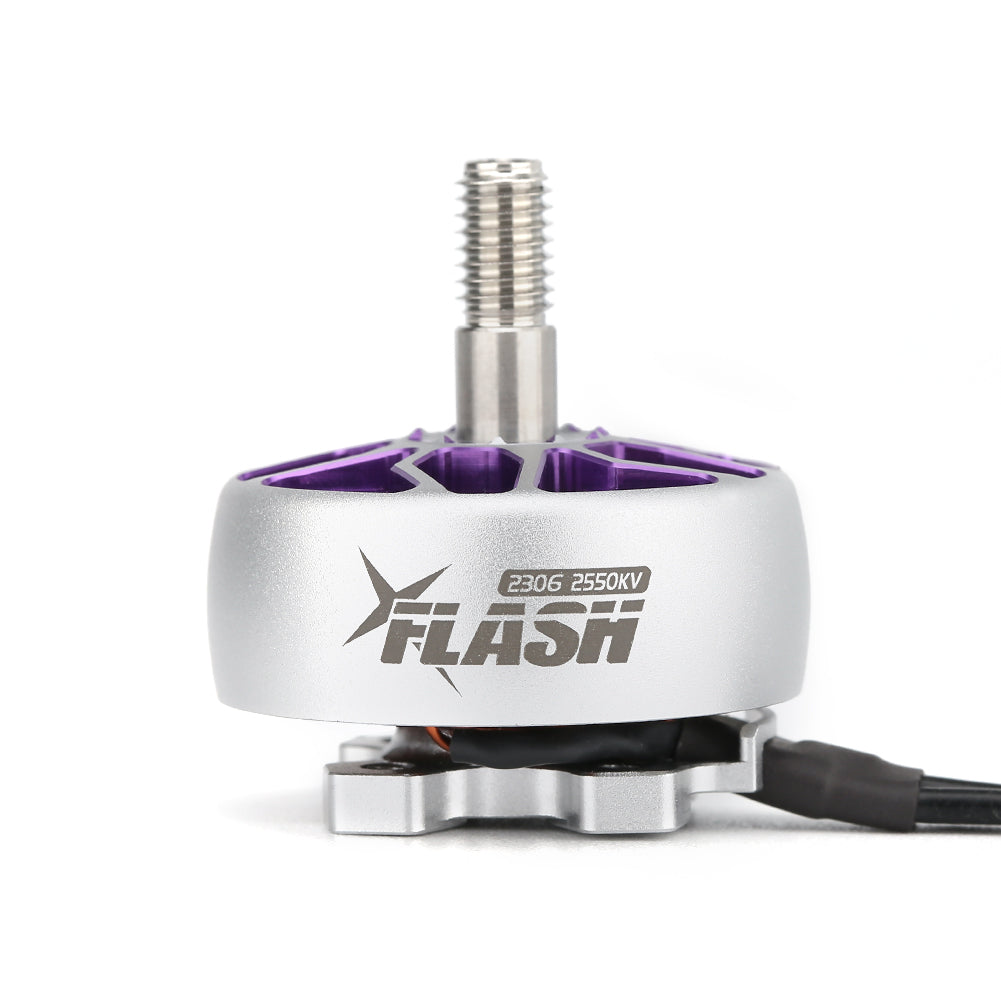

Flash 2306 FPV Motor

SKU00127
143 In stock
$21.90
KV Options :
$21.90

Description

The FlyFishRC Flash 2306 Motor uses the Uni-Bell structure design providing high crash-resistance while not adding more weight, providing high reliability and explosive power and thrust for FPV pilots at an affordable price.

During months of design, testing and improvement before mass production and testing help of FPV pilots from around the globe, we are now proud to release these excellent motors, that combine top notch performance, slick look, reliable structure and color schemes.

The overall use of high-quality materials and sturdy structural design, NMB bearings with N52SH heat resistant magnets, up to 220 ° high heat resistant copper wire ensures top level performance and a much longer lifespan.

High-quality 7075 Unibell bells make the motors even more durable. We haven’t forgotten about appearance! Stunning minimalist color schemes paired with a matte texture deliver smoothness and power with just enough responsiveness and controllable precision to fly. These motors give that unforgettable feeling of being locked in!

The gray-purple series is produced with a delicate matte surface treatment process for even better visual aesthetics of the motor. The two-color matte texture is extremely difficult to manufacture compared to the regular process and we were able to overcome the difficulties and make it mass-producible. At present, FlyFishRC is the first company to have accomplished that.

If you've been looking for a high-quality motor, Flash motor is definitely a good choice.

Features:
-Frosted Matte Unibell Design
-High strength titanium alloy shaft and 7075 aluminum
-Ingenious non-slip structure of the prop seat
-220°high temperature resistant copper wire
-NMB imported bearings and N52SH magnets
-Thickened motor base and a wire outlet protection braces
-High-precision manufacturing and assembly process
-Strict dynamic balance and performance QC
-34.2g (including 150mm wires)

Specification:
- Model: Flash 2306
- KV: 1750KV/2550KV (select)
- Input Voltage: 4S/6S Lipo
- Configuration: 12N14P
- Motor dimensions (Dia *Len): 29.4*31.8MM
- Weight: 32.2g with short wire
- Wire length: 20AWG 150mm
- Mounting pattern: 16*16mm


Includes:
1x Flash 2306 Motor
1x Hardware Set



Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jules
Tried out of curiosity

Been using well known motors from tmotor, farouk sbang, mr steele, fpvcycle, geprc, etc. but was so curious to try out something different. Seeing some good reviews from this motor so I gave it a shot and damn it did not disappoint. This is a buttery smooth motor from low to mid and gives you outright power when you need it. Can’t speak yet in terms of durability, too early to tell but it’s worth it, performance wise.
