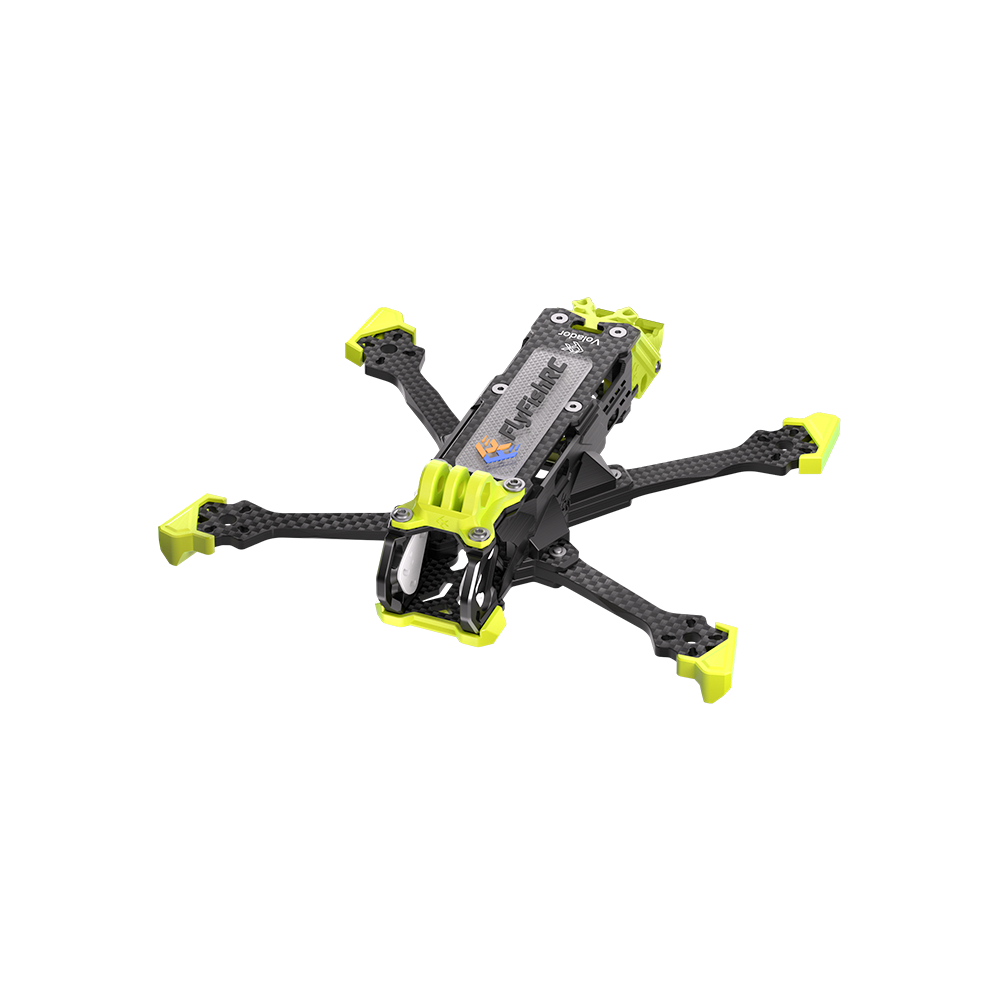

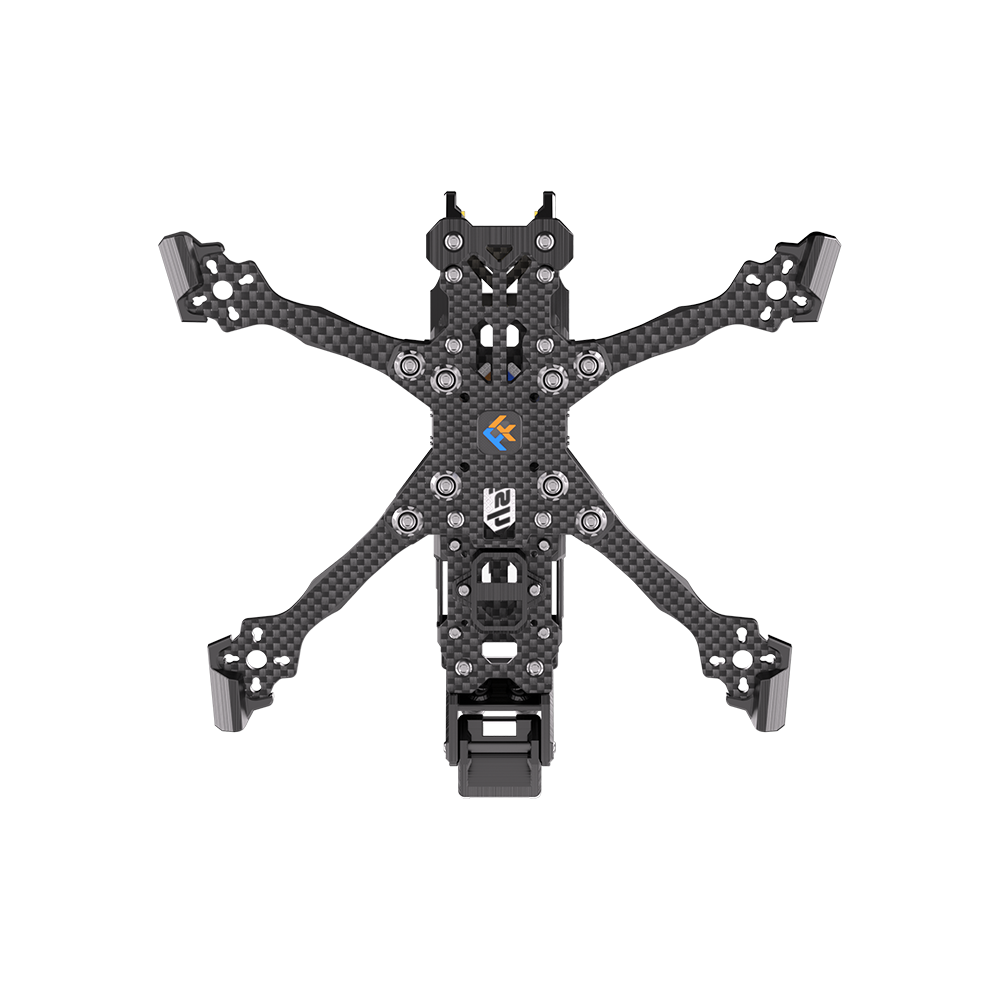

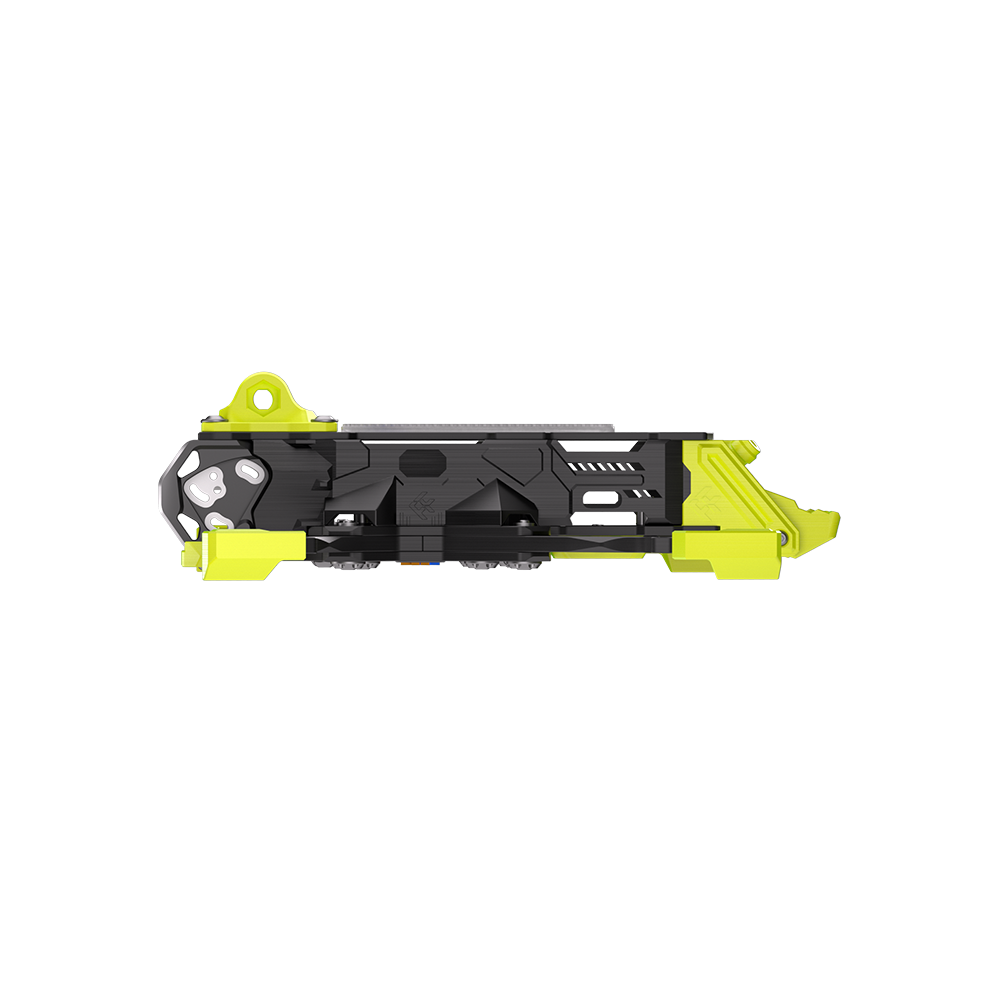

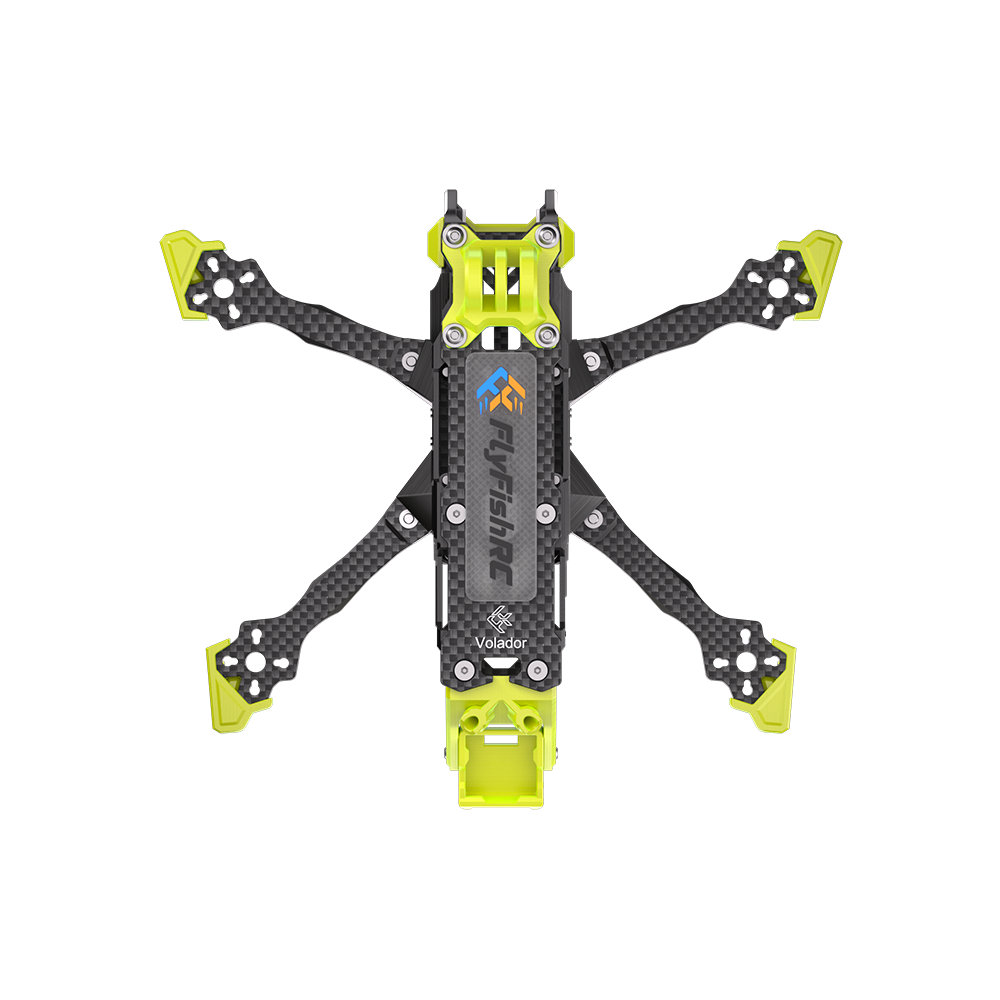

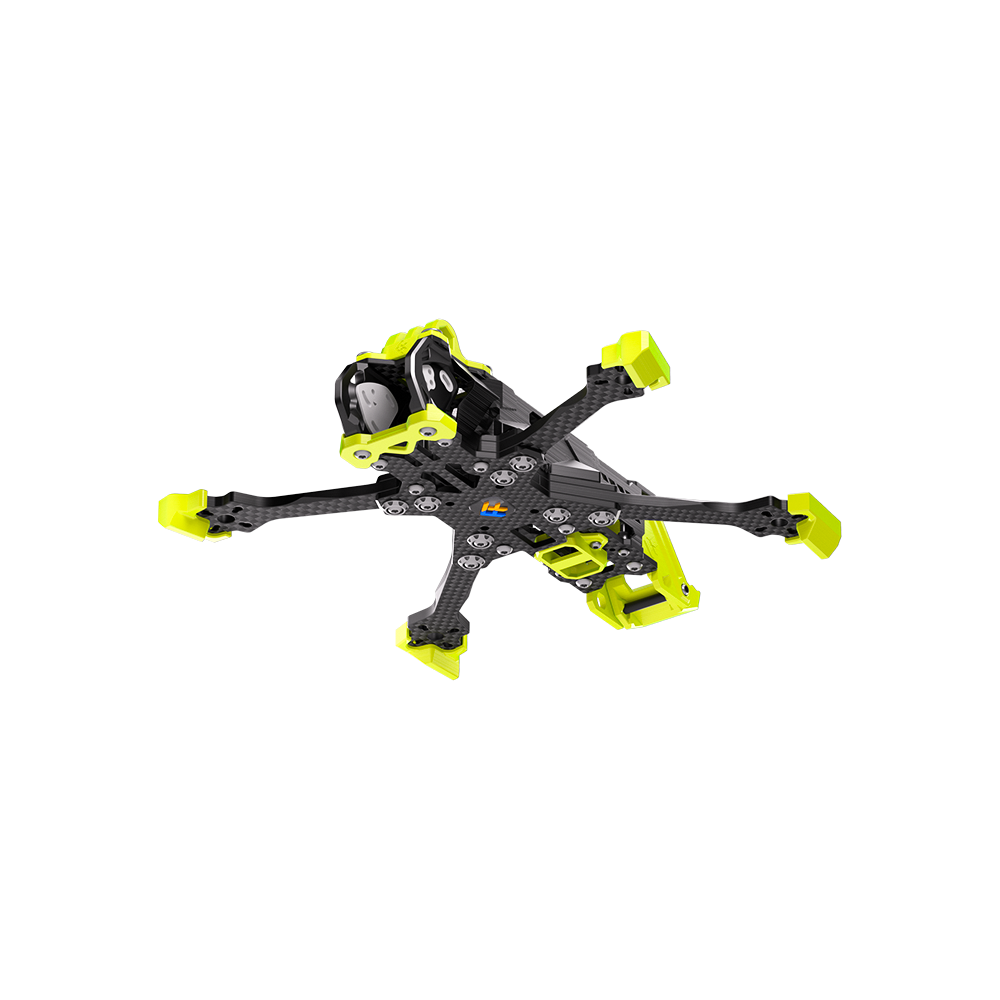

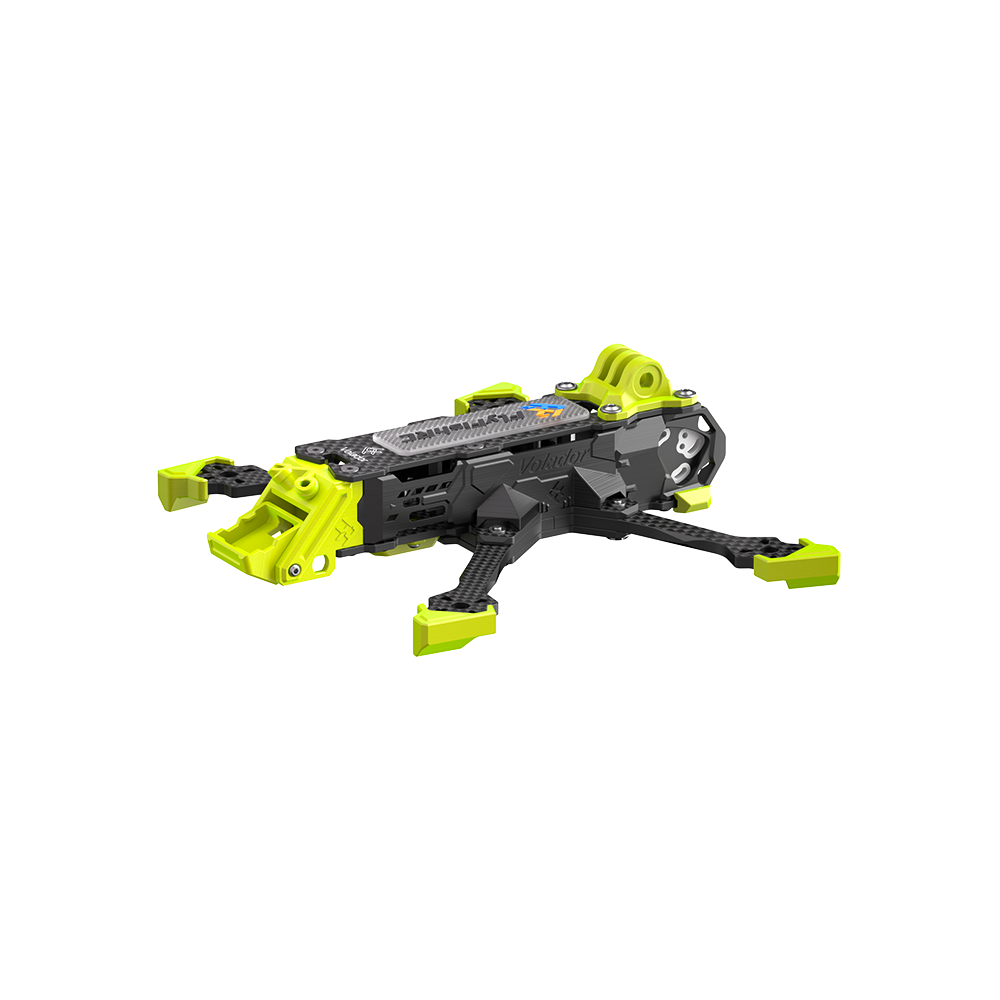

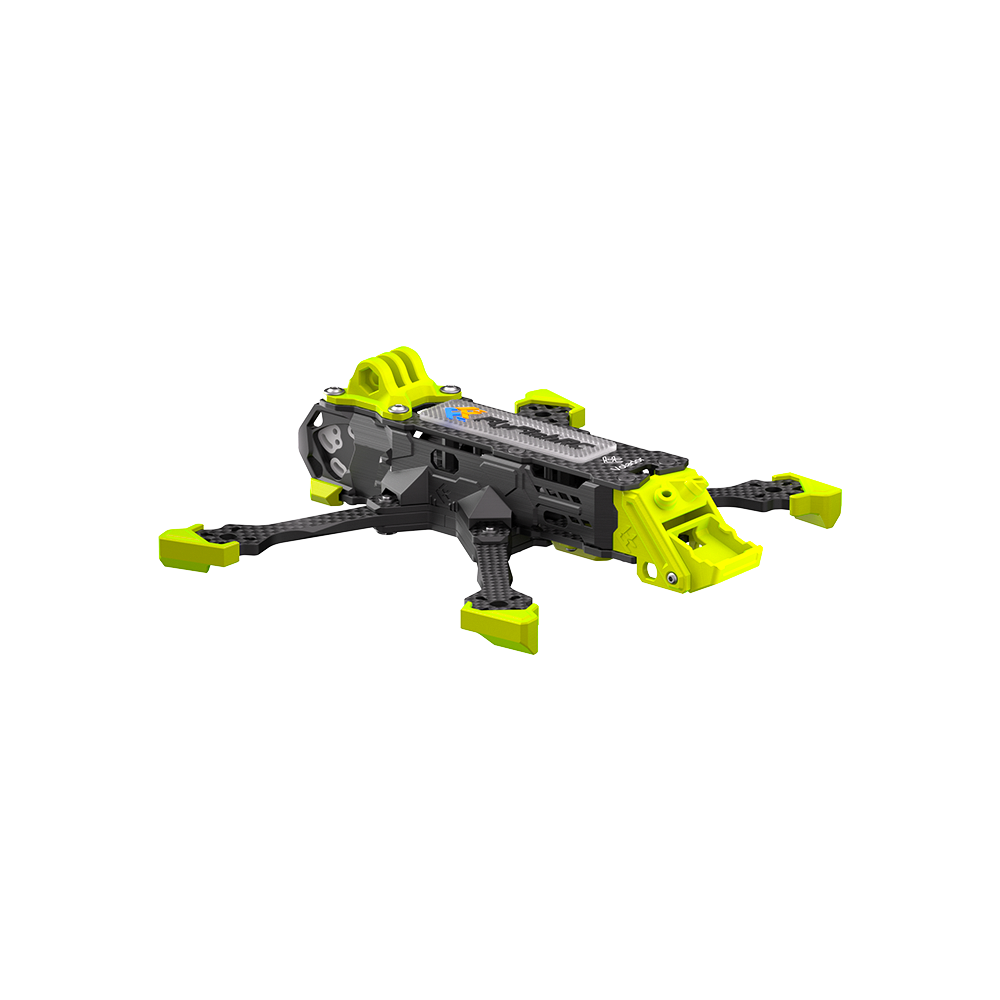

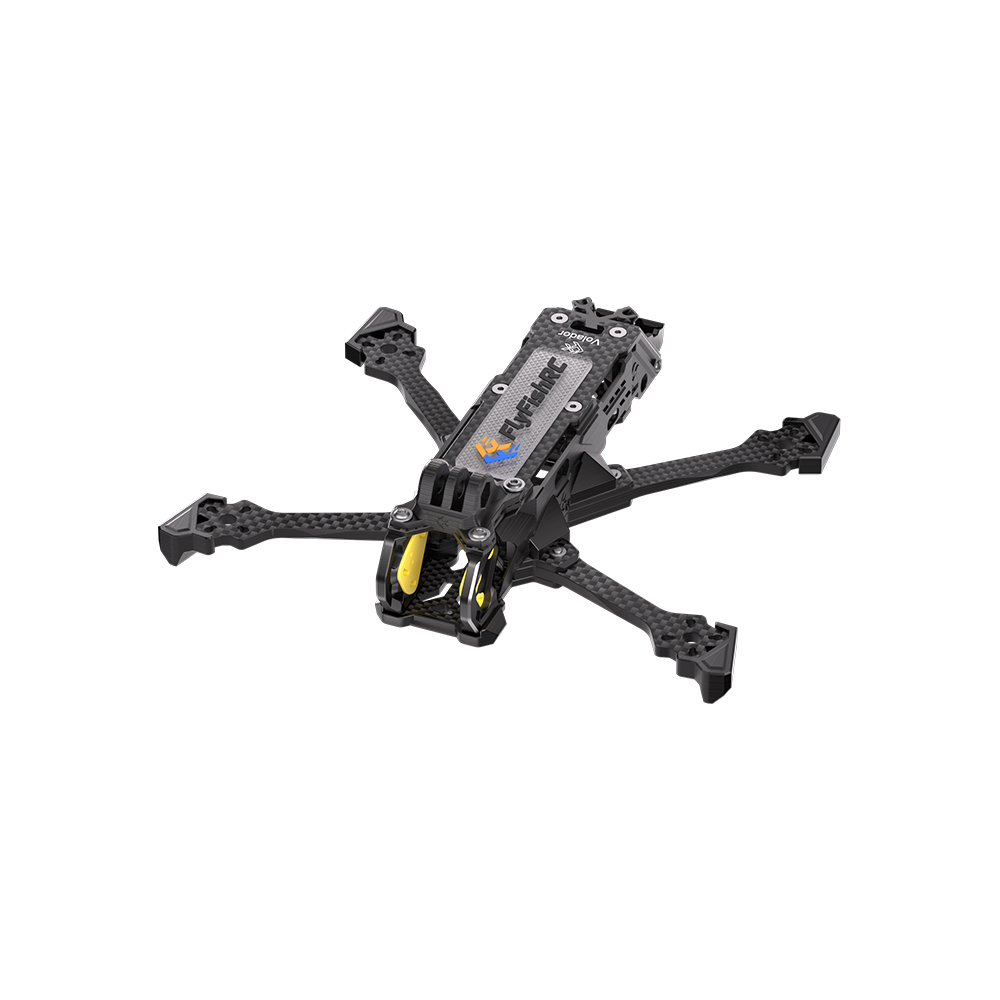

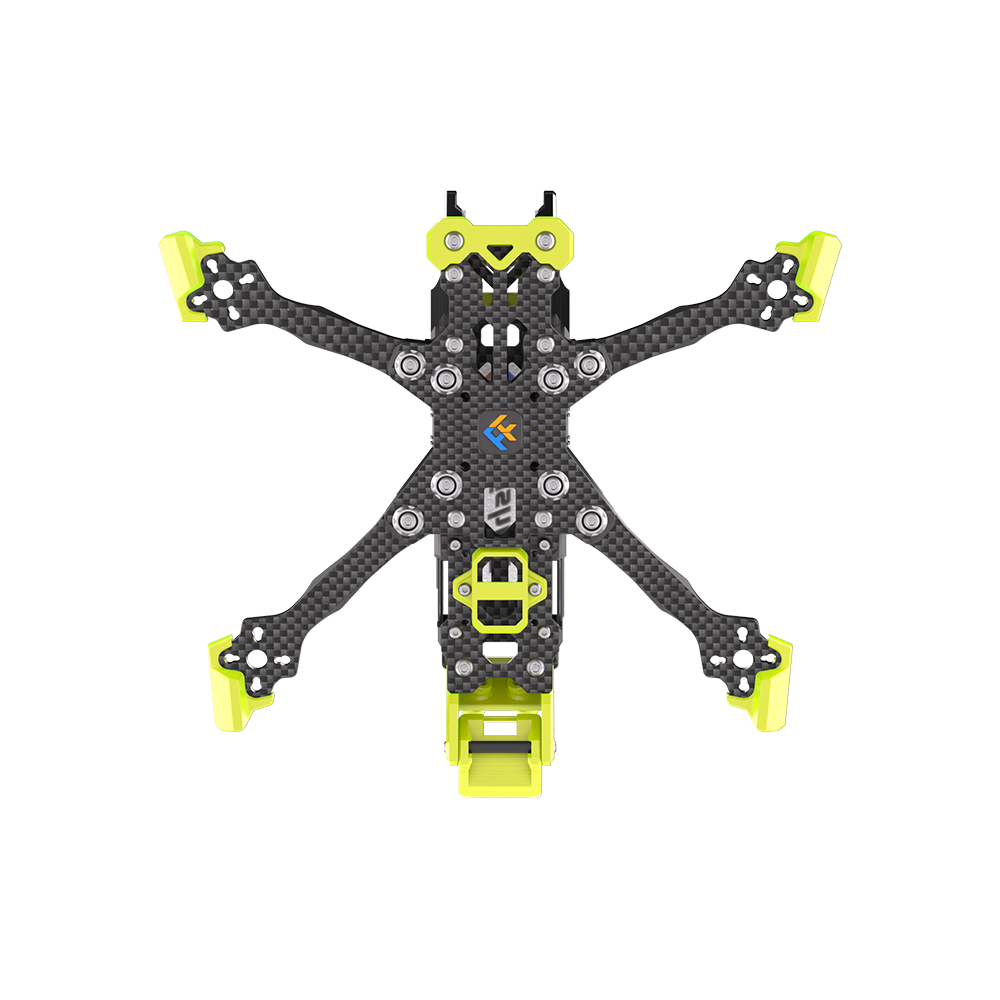

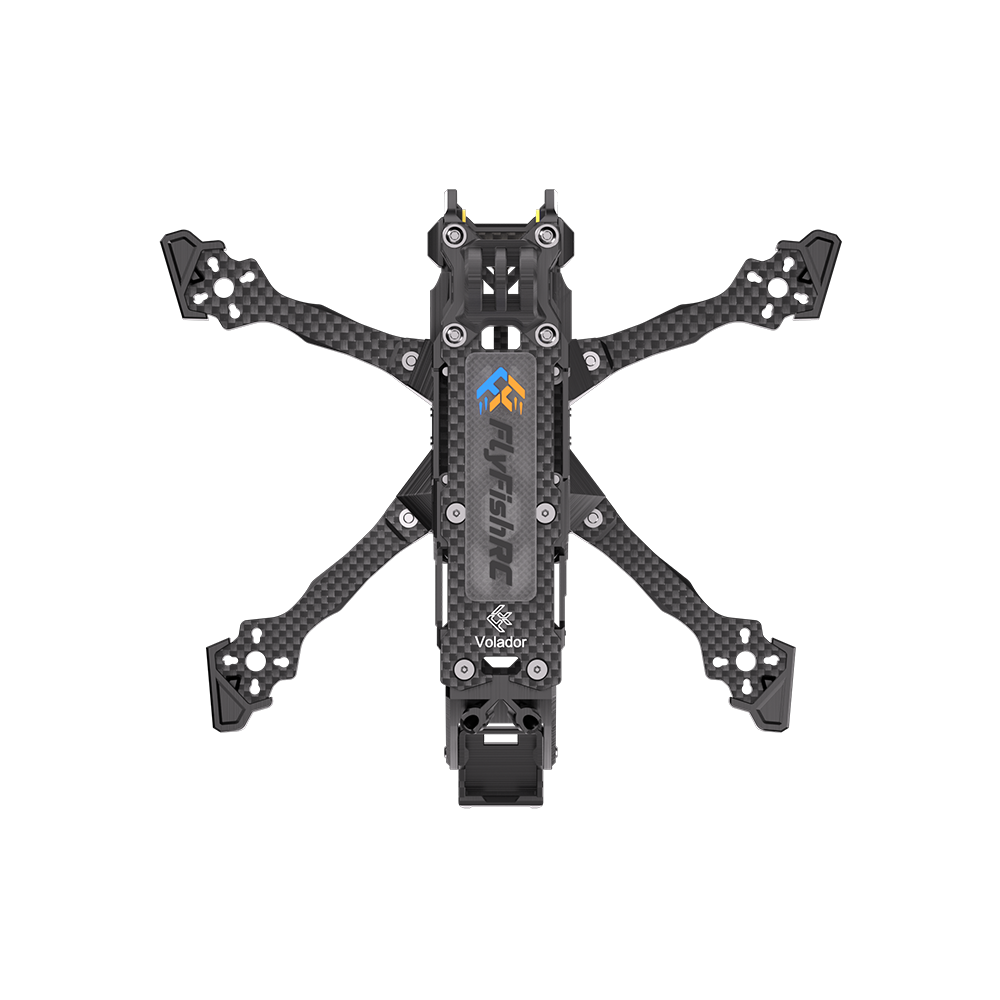

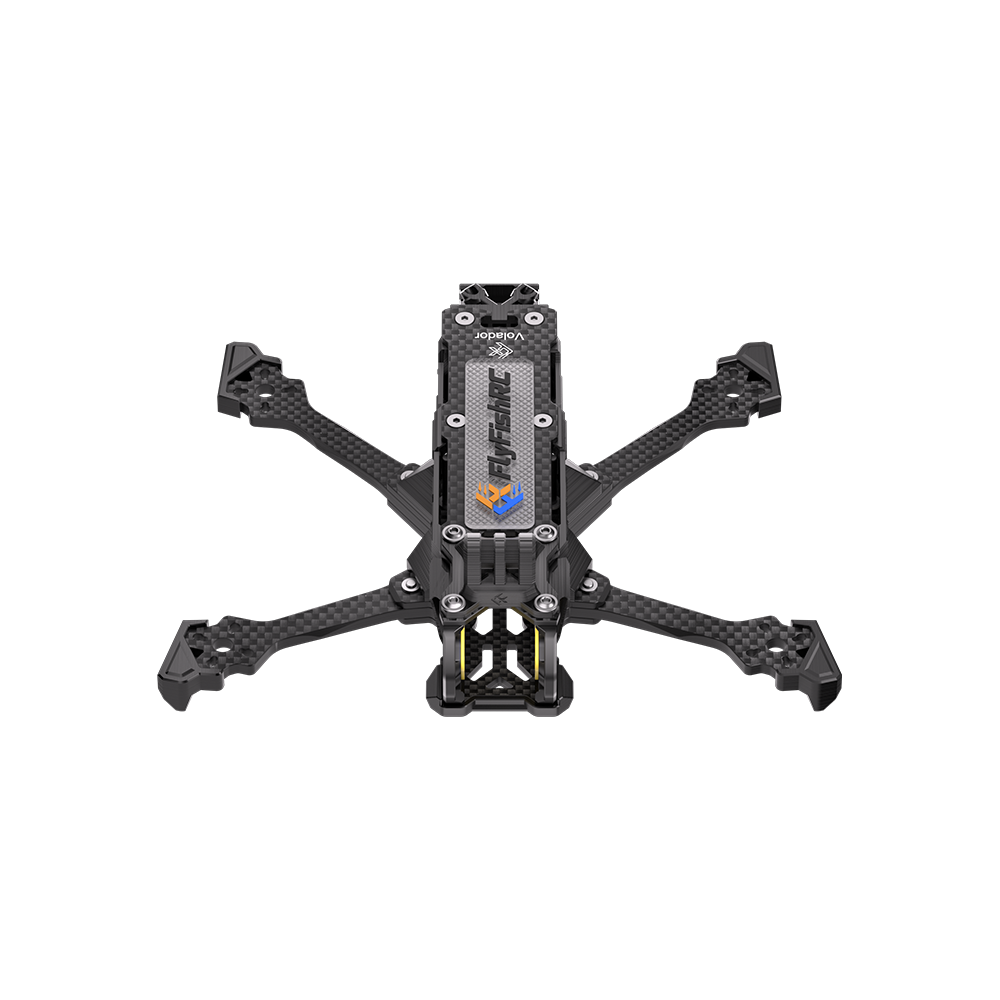

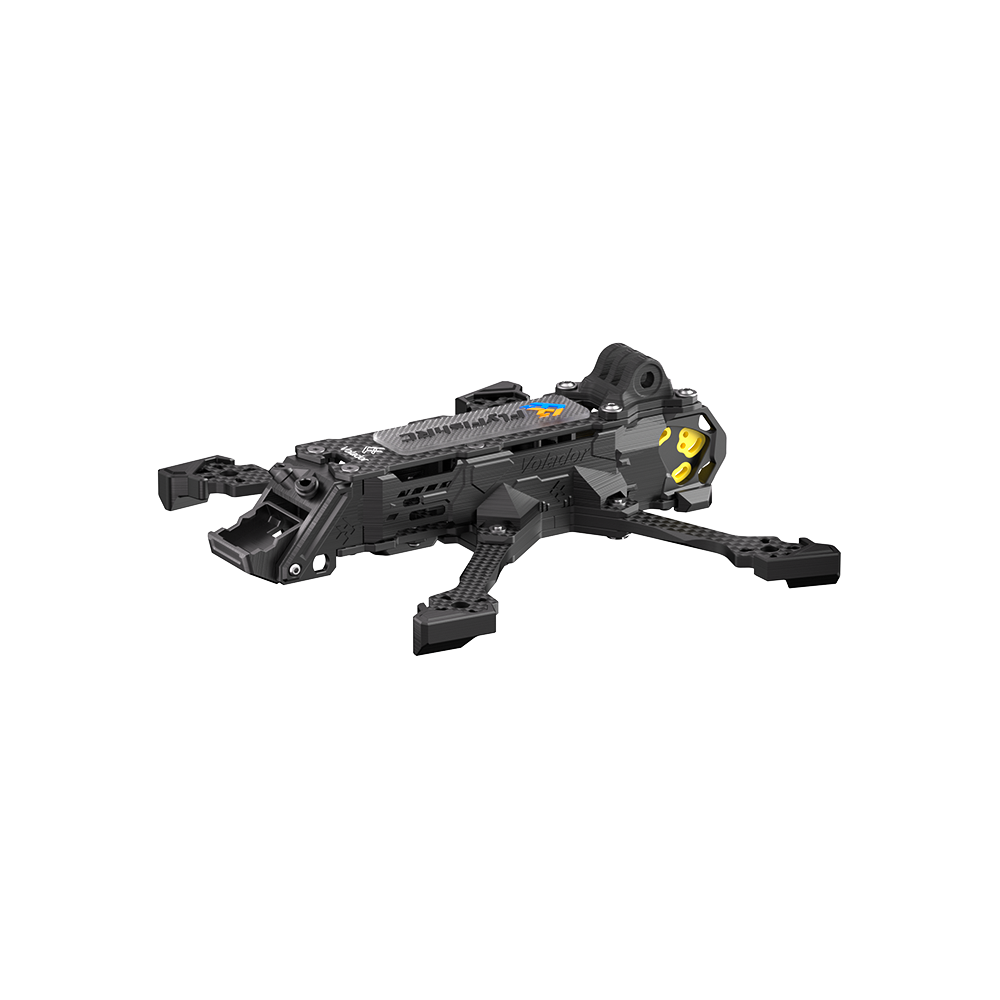

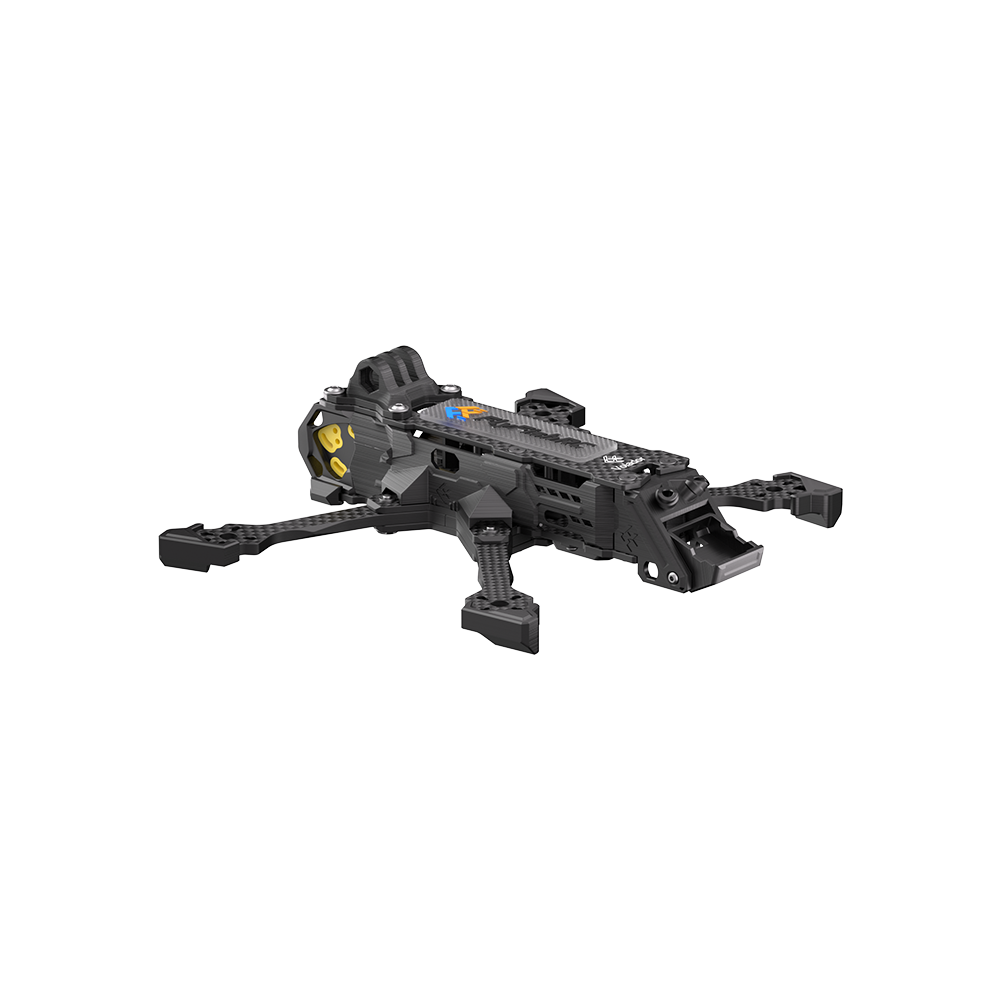

Volador VD4 O4 Pro Deadcat FPV T700 Frame Kit
Description
The all-new Flying Fish Volador VD4, weighing 127g, features a DC layout, providing unobstructed flight view without propellers in view. The newly designed CNC side plates paired with a silicone-damped camera mount perfectly match the O4 VTX, completely eliminating jello effect and delivering a smooth FPV experience.
Key Highlights
Strong, Light, Stable, Simple Assembly
The main structure combines T700 carbon fiber with high-strength CNC aluminum alloy. Each edge is precision chamfered, achieving slight weight reduction while protecting cables for a premium, integrated finish. Innovative locking mechanisms physically suppress frame resonance, complemented by custom high-quality TPU components for more robustness and stability.
Versatile Compatibility, Efficient Damping
Dual mounting positions for the stack, VTX, and motors provide more flexibility, easily accommodating various ESCs, FCs and most analog and HD VTX systems on the market. Includes all necessary accessories for both analog and HD builds. Specially designed silicone damping pads for the VTX camera effectively eliminate DVR jello effect.
Get yours now and explore with FlyFishRC!
Specifications:
Arm Thickness: 4mm
Top Plate Thickness: 2mm
Middle Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Brace Thickness: 4mm

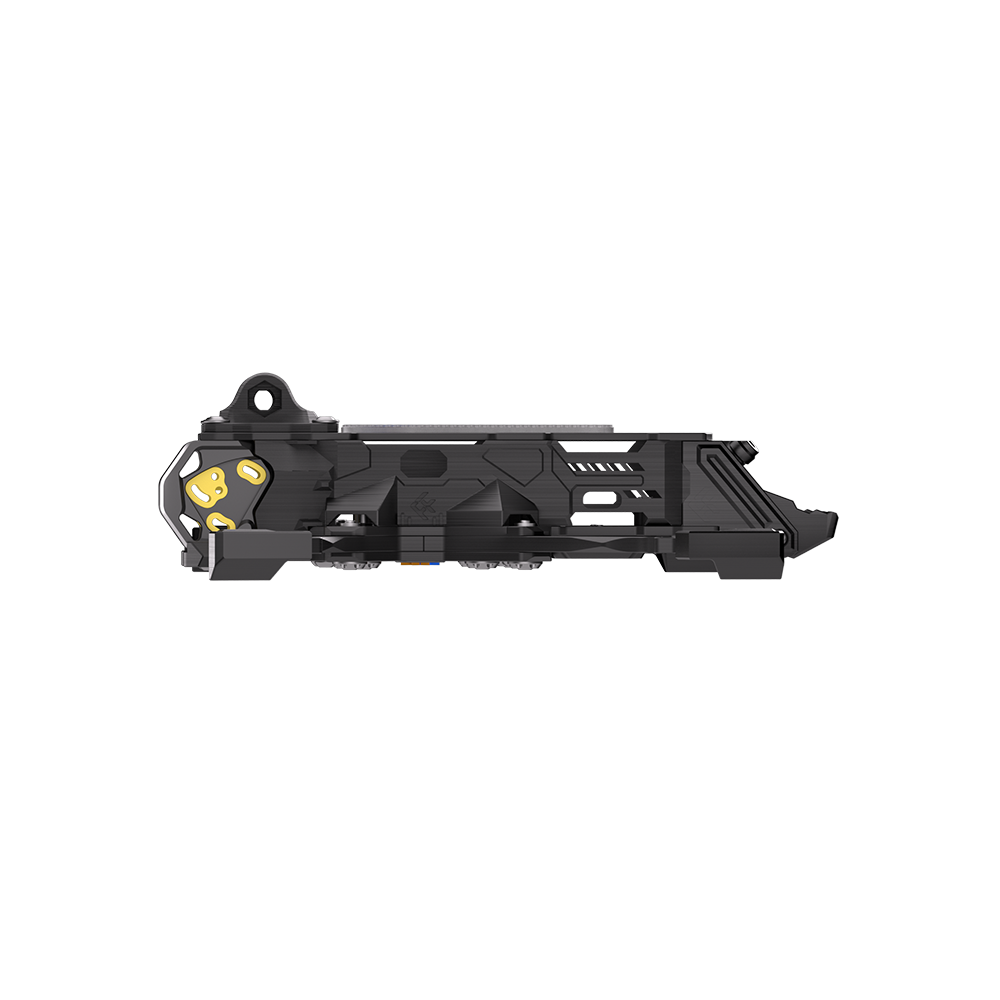

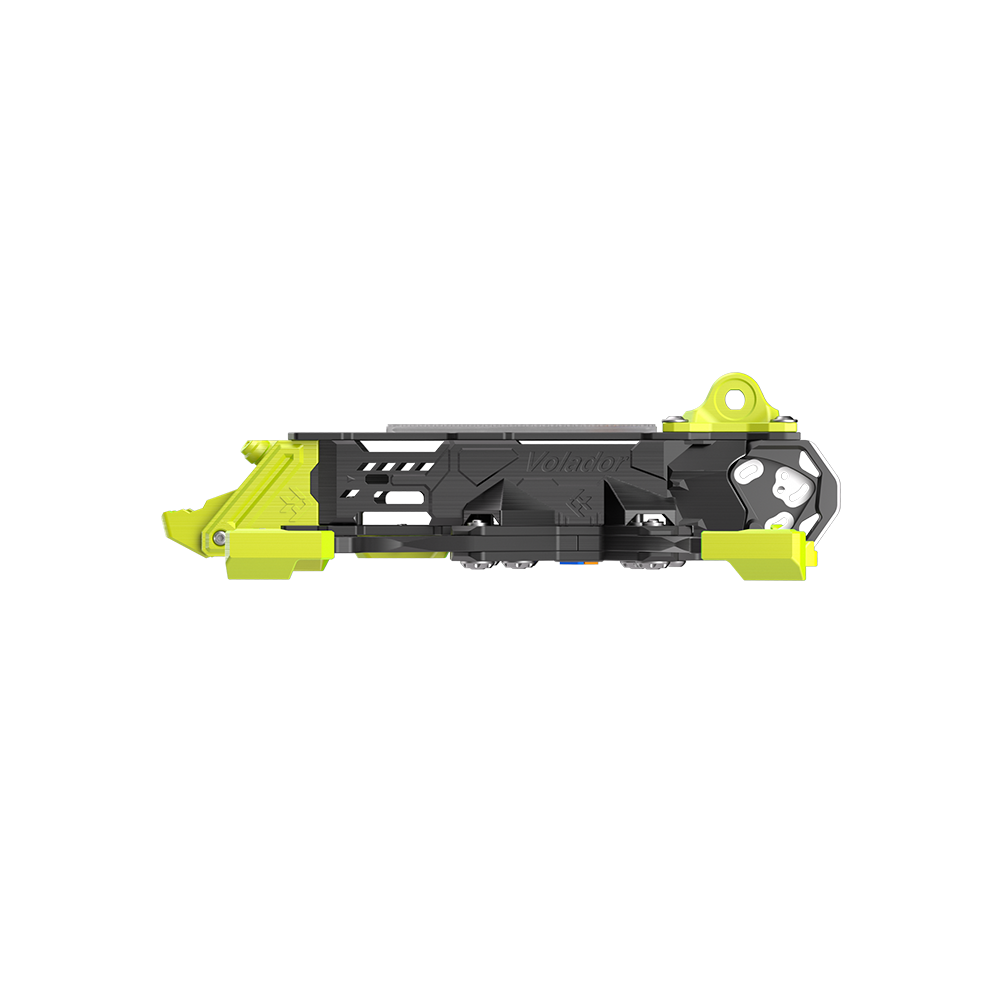

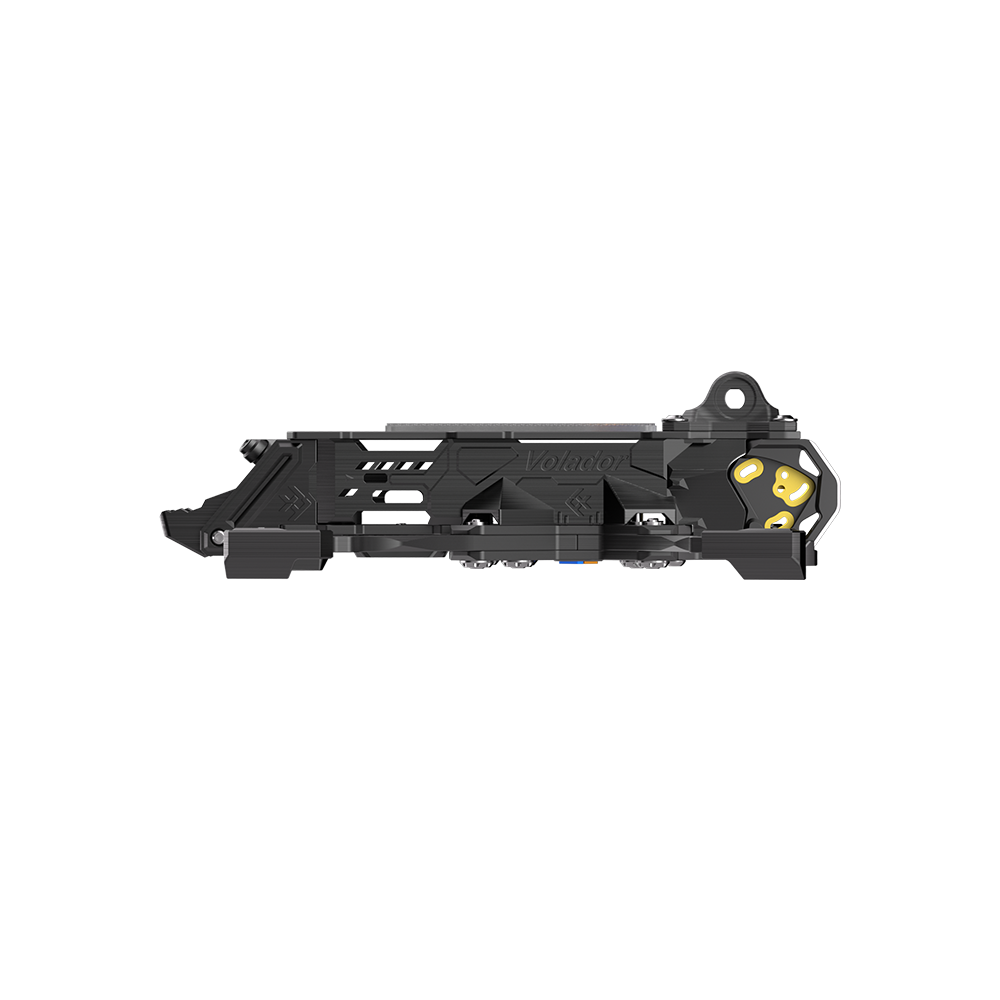

CNC Side Plate Thickness: 5mm
Propeller Size: 4 inch
Material: T700 Carbon Fiber
FPV Camera Spacing: 19mm/20mm
Weight: Approx. 127g (including printed parts)
Color: Black/Yellow
Frame Dimensions: 195*155*33mm
Wheelbase: 183mm
Flight Stack Mounting Holes: 20*20mm (M3) / 30.5*30.5mm (M3)
Flight Stack Mounting Height: 22mm
VTX Mounting Holes: 20*20mm (M2) / 25.5*25.5mm (M2)
Motor Mounting Holes: 12*12mm (φ2mm) / 16×16mm (φ3mm)
Includes:
1x Volador VD4 O4 Pro Frame Kit
